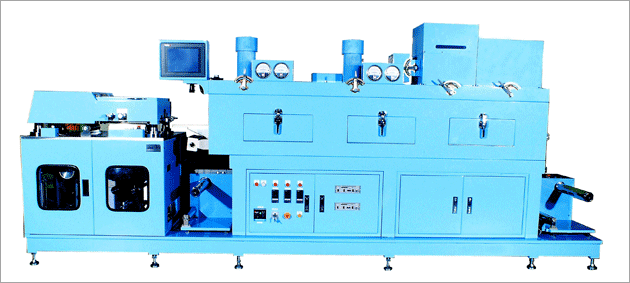

Can print patterns according to the specific characteristics to the Green Sheet on Roll to Roll patterned PET film
|
|
|
MLCC, Chip Varistor, Chip inductor, etc. Chip parts |
| |
|
|
|
|
|
|
|
Item |
Dimension and Specification |
Remarks |
|
Equipment Size |
4,300mm(L)
x 1,000mm(W) x 1,900mm(H) |
|
|
Weight |
1,800
Kg |
|
|
Equipment Speed |
3.5
sec.~ 8 sec / Pattern |
|
|
Printing Method |
Screen-typed printing method |
|
|
Print Head Maker |
DEK-J
(KYORLTSU) |
|
|
Plate Making Printing Size |
320
x 320, 350 x 350, 450 x 450 Type |
|
|
Pattern
Size |
According to user specification |
|
|
Dryer Size |
2,500mm(L)
x 500mm(W) x 535mm(H) |
|
|
Drying method |
Up-down IR Heater & Hot air circulation system |
Separate management 1,2 zone |
|
|
|
|
|
Division |
Features |
Advantages |
Equipment Size |
Simple and Compact Equipment
Structure - Film transfer section installed in the lower space |
Equipment to be installed in Clean Room maintains the same function, and designed in small size |
Print Spueegee method |
Up-down operation - Motor & Cam |
Up-down operation by Air Cylinder and compared to transport, stable and high quality printing |
Transport - Motor & Ball Screw |
Drying section |
Long drying section compared to compact size |
Print speed is determined by drying capability.
Overall length is small, but has long drying section. Separate up-down drying technology is leading technology in the industry |
Separated dry Zone 1,2 to manage detailed condition |
|
|
|
|
|
|
|
