Item

Dimension and Specification

Remarks

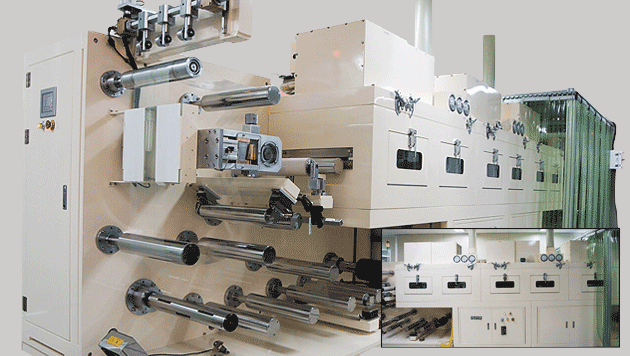

Equipment specification

Equipment size

2,000mm(L) x 700mm (W) x 1,100mm(H)



Weight

550Kg



Total capacitance

35KW



Coating Head Type

Doctor Blade Coater



Accuracy

Coating thickness within ±2%



Speed control

0.1 ~ 8 Meter/min



Product Specifications

Coating thickness

20 ㎛ ~ 150 ㎛



Coating width

Max. 200 mm



Slurry viscosity

500 cps ~ 5,000 cps



Features

Structured explosion proof





Division

Advantages

Equipment Size

Equipment to be installed in Clean Room maintains the same function, and designed in small size.

Sheet Feeding

Compared to Suction Roll, simple with no noise

Sheet Cutting

Compared to up-down operated Valde, no straining to the equipment with precise cutting

Sheet peel

According to sheet composition and thickness and film characteristics, can adjust the peel force.
