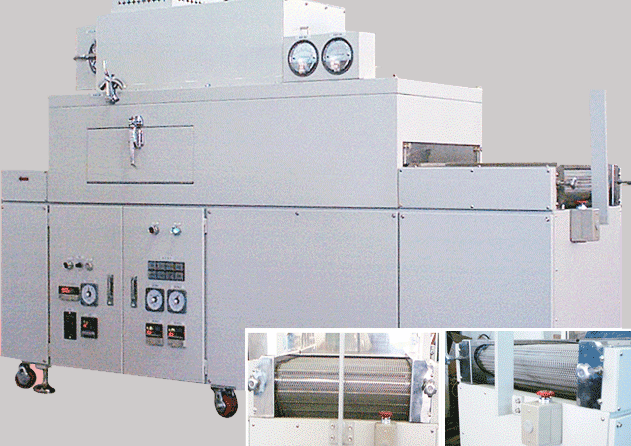

Dryer that can print, mold, and coat the ROLL film continuously



Mix of I-R and hot air dryer, efficient for drying printed items.

Dryer divided into 2 ZONE, 1# ZONE penetrate the print part by radiation, 2# ZONE spray with powerful jet and NOZEEL to maximize the efficiency

Installed filter to remove the fine dust

Continuous drying with even temperature distribution making uniform product quality

Attached various safety devices (pressure gauge, displacement meter, ELB, COVER, HEATER)

Purpose: MLCC printer screen printing, pad printing, film width 200~500m/m, internal dimension? W x L x H(500 x 600 x 3,000), TEMP : MAX 200℃

Will meet your specification



Size

2260 x 1616 x 610

Format

Conveyor hot air circulation

Conveyor standard

RS 40# CHAIN? SUS CHAIN BETL (440 mm x 10.000 mm)

Power

220V x 3Ø x 16kw

Temperature

90℃ ~ 150℃

Temperature control

P.I.D temperature control. PLC control

Filter

Free filter installed

Air supply and exhaus

Controlled by the differential pressure gauge
