Application

Heat treatment of industrial products. Indentation process after heat treatment of metal products

Description

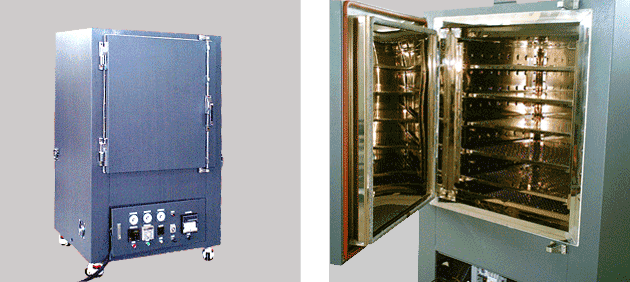

This product shows excellent thermal effect in long-term high temperature usage. Hot-air circulation system with almost no temperature variation and even heat distribution. Installed recorder to check the inside temperature deviation at all times.



Model

SI 703

SI 704

SI 705

External Dimension

H1500 x L750 x W660

H1600 x L850 x W710

H1810 x L1100 x W1010

Internal Dimension

H450 x L450 x W450

H600 x L600 x W500

H800 x L800 x W800

Internal Specification

¼± ¹Ý ½Ä

¼± ¹Ý ½Ä

¼± ¹Ý ½Ä

MAX TEMP

700 ¡É

700 ¡É

700 ¡É

Power

380V x 3Ø x 18kw

380V x 3Ø x 25kw

380V x 3Ø x 36kw
